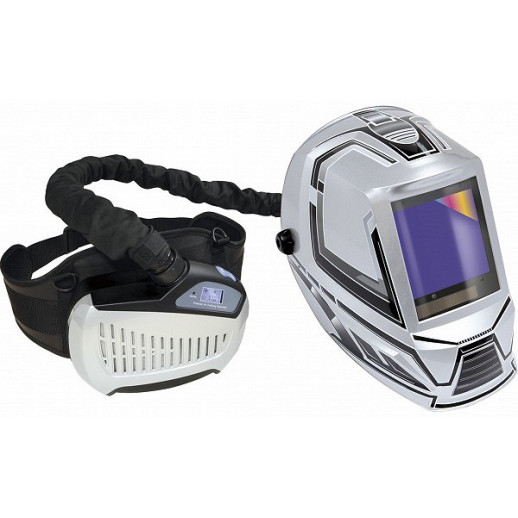

Welding mask LCD GYSMATIC 5/13 XXL and air purification system is a combined unit that protects the face and breathing. The air purification system, which works on the basis of overpressure air circulation, is attached to the users waist and from there the device is led into the helmet by a tube. adjustable air flow. The flow of purified air creates overpressure. which prevents welding fumes from the outside environment from entering the helmet. A model praised by users. due to its lightness and ease of use. The LCD screen is an LCD display showing parameters. With a memory of saved parameters. adjustable 3 parameters - Sensitivity (sensitivity). Delay (delay in becoming brighter). Shade (darkness). Respirator system with three different speeds. Up to 12 h battery.
Technical information mask:
- Classification 1/2/1/1
- Bright state 4
- Dark state 5-13
- Response speed 0.1 milliseconds
- Automatically luminous. adjustable
- Field of view 100x83 mm
- Power - solar+battery (CR2450)
- Adjustable Sensitivity. Delay. Shade. Grinding. Settings. Memory
- Weight 836 g
- Number of sensors 4
- Suitability MMA 5->400/TIG 2->300/MIG-MAG 5->400
- Standard CE EN 166/EN 175/EN 379/EN 12941
Technical information respirator system:
- Air supply (3 levels) 1-170 l/min. 2-200 l/min. 3-230 l/min
- Battery life (under normal conditions) 1 to 12 h. 2 to 11 h. 3 to 9 h
- Air tightness/protection 98% (TH2)
- Filtration purity 99.996%
- Noise level max 73 dB
- Charging time 3-4 h
- Battery type Li-ion
- Belt size adjustable 900-1300 mm
- Weight 1.7 kg
- Standard EN12941
